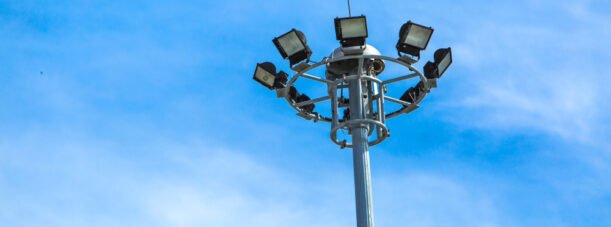

Is a tall post with lighting joined to the best indicating towards the ground, as a rule but not continuously utilized to light a thruway or recreational field. The post that the lighting is mounted on is for the most part at slightest 30 meters tall whereas the lighting comprises of a light ring encompassing the shaft with one or a few autonomous lighting installations mounted around it. A few units have the lighting encompassed by a circular shield to anticipate or diminish light contamination or light trespass from influencing neighborhoods adjoining to the interstate.
DIAMETER OF HIGH MAST POLE
| Tech Detail | 12 Mtr | 12.5 Mtr | 16 Mtr | 20 Mtr | 25 Mtr | 30 Mtr | 40 Mtr | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Material Construction | BSEN10025 S355 | |||||||||||
| Thickness | 3,3 mm | 3,3 mm | 3,4 mm | 3,4 mm | 3,4,4 mm | 3,4,5 mm | 4,4,5,5,6,6 mm | |||||
| Top & Bottom Dia | 150/360 mm | 150/360 mm | 150/360 mm | 150/410 mm | 150/460 mm | 150/500 mm | 150/700 mm | |||||
| Size of base plate | 540mm | 540mm | 540mm | 610mm | 660mm | 700mm | 900mm | |||||
| Base plate thickness | 16 mm | 16 mm | 20 mm | 25 mm | 25 mm | 30 mm | 40 mm | |||||
| No. of foundation boits | 6 nos | 6 nos | 8 nos | 8 nos | 12 nos | 12 nos | 16 nos | |||||
